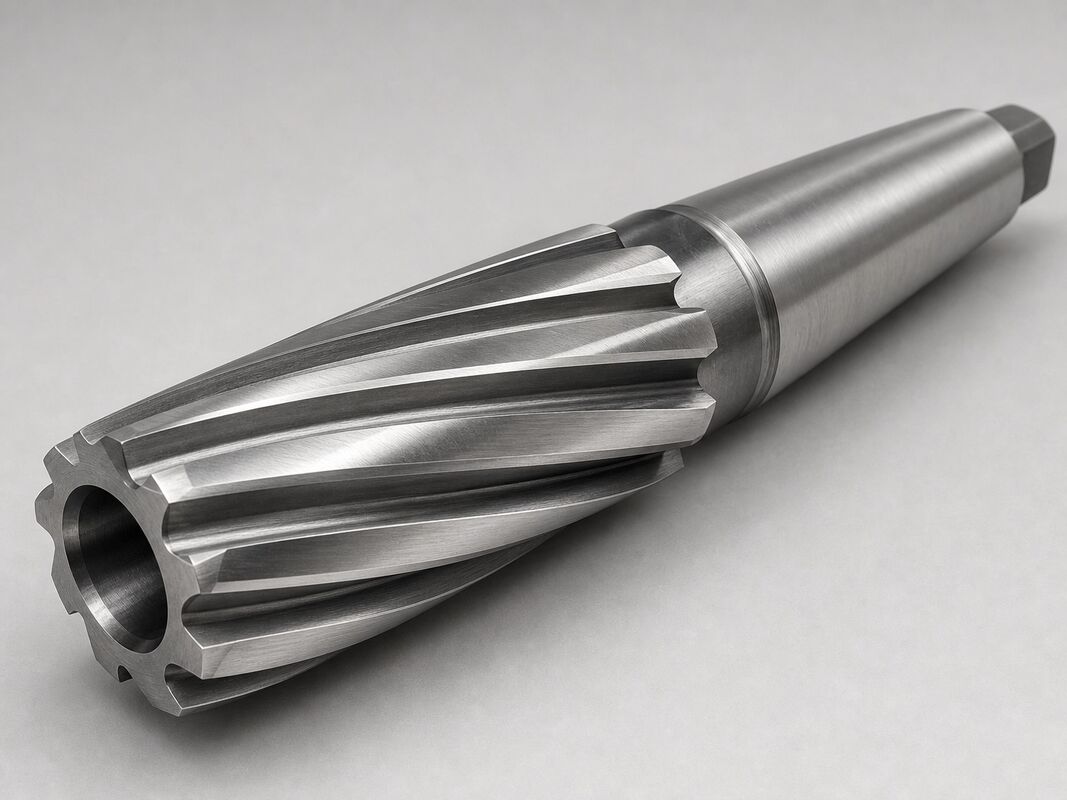

Supal Morse Taper Shank Chucking Reamer – Excellent Surface Finish, Made to Drawing

Product Description:

The carbide reamers are precision cutting tools designed to provide superior finishing and sizing of holes in various materials. Engineered for high performance and durability, these reamers are ideal for applications requiring exceptional accuracy and smooth surface finishes. Whether you are working in a CNC machining environment or utilizing traditional lathe operations, our carbide reamers deliver outstanding results consistently.

One of the key features of these carbide reamers is their versatile shank diameter, ranging from 4mm to 20mm. This range makes them suitable for a variety of machining setups, accommodating different tool holders and machines with ease. The flexibility in shank diameter ensures that users can select the perfect fit for their specific requirements, enhancing stability and reducing tool runout during operation.

Coating plays a crucial role in the performance and longevity of cutting tools, and our carbide reamers come with customized coating options. These coatings are specifically tailored to improve wear resistance, reduce friction, and enhance heat dissipation during cutting. Depending on the machining conditions and the materials being processed, customers can choose coatings that best suit their needs, thereby extending tool life and maintaining consistent reaming quality.

The helix angle of the reamers varies between 35°, 38°, 40°, and 45°, allowing for optimized chip evacuation and cutting efficiency across different materials. A higher helix angle generally facilitates better chip removal and smoother cutting action, making these tools highly effective for reaming operations on metals like copper, cast iron, carbon steel, and mould steel. The availability of multiple helix angles means that machinists can select the ideal tool geometry to match the hardness and machinability of the workpiece.

Flute length is another critical specification, with options ranging from 20mm to 60mm. The flute length determines the depth of cut and influences the reamer's ability to maintain rigidity and precision during machining. Shorter flute lengths are excellent for shallow holes requiring high accuracy, while longer flutes are suitable for deeper reaming tasks without sacrificing tool stability. This adaptability makes the carbide reamers suitable for various industrial applications, from small precision parts to larger components.

These carbide reamers are particularly suitable for working with materials such as copper, cast iron, carbon steel, and mould steel. The combination of high-quality carbide material and advanced coatings ensures that the tools can withstand the demands of machining these diverse metals while delivering clean, precise holes with excellent surface finish. This makes them a preferred choice in industries such as automotive, aerospace, mold making, and general manufacturing.

In addition to their use in CNC machines, these carbide reamers are also effective as welding reamers, providing the precision needed for post-weld hole finishing and ensuring tight tolerances in welded assemblies. Their robust design and sharp cutting edges make them reliable for operations that require reaming after welding processes, where material properties might have been altered due to heat. Furthermore, the lathe reamer variant is tailored for use in lathe machines, offering ease of handling and consistent performance in manual or semi-automatic lathe operations.

Overall, these carbide reamers combine versatility, durability, and precision, making them indispensable tools for machinists aiming to achieve high-quality hole finishes. Whether used as a carbide reamer for CNC machining, a welding reamer for post-weld finishing, or a lathe reamer for manual operations, these tools deliver excellent cutting performance. Their customizable features, including shank diameter, coating, helix angle, and flute length, allow them to be fine-tuned to meet specific application demands, ensuring optimal productivity and cost-efficiency in manufacturing processes.

Features:

Our products incorporate precision ground flutes that guarantee exceptional hole accuracy along with a smooth surface finish. This meticulous grinding process ensures consistent performance and high-quality results.

Featuring a Morse taper shank available in sizes MT1 through MT5, these tools are designed for direct insertion into machine spindles. This design provides a secure, rigid, and concentric fit, enhancing stability during operation.

We offer a variety of material options including High-Speed Steel (HSS), Solid Carbide, and Cobalt. These selections are optimized to handle a wide range of workpiece materials such as steel, cast iron, stainless steel, and aluminum, ensuring versatility and durability.

Choose between straight or spiral flute designs based on your application needs. Both designs promote excellent chip removal and reduce cutting resistance, improving efficiency and tool life.

Our tools are available with either right-hand or left-hand cutting orientations, accommodating different rotational directions to suit specific machining requirements.

We offer customizable dimensions including diameter, overall length, flute length, and taper number. These can be tailored precisely according to your detailed drawings to meet unique project specifications.

For enhanced durability and extended tool life, various coating options are available such as TiN, TiCN, TiAlN, or uncoated finishes, allowing you to select the best solution for your operating conditions.

Technical Parameters:

This carbide reamer for CNC machining is available with various flute configurations including spiral flute reamer designs, and tapered reamer options to meet diverse machining needs.

Applications:

Customization:

Our Supal Carbide Reamers, model number Reamer, are expertly crafted in Changzhou, Jiangsu, China, and certified to meet ISO9001 standards. We offer product customization services to meet your specific needs, whether you require a tapered reamer, carbide reamer for CNC applications, or a precision hand reamer.

The reamers feature a straight flute type and shank type, with an overall length ranging from 75mm to 200mm. You can choose from 4, 6, or 8 flutes, and helix angles of 35°, 38°, 40°, or 45° to suit your machining requirements.

Our minimum order quantity is 5PCS, with pricing to be negotiated based on your customization requests. Each carbide reamer is carefully packaged in a single plastic tube to ensure safe delivery.

We guarantee a fast delivery time of 7-15 days and support flexible payment terms including T/T, PayPal, and Alipay. With a supply ability of up to 100,000,000,000PCS, Supal can fulfill both small and large orders efficiently.

Choose Supal for high-quality, customizable carbide reamers tailored to your CNC machining or manual reaming needs, combining precision, durability, and excellent service.

Support and Services:

Our Carbide Reamers are designed to deliver exceptional precision and durability for your machining needs. To ensure optimal performance, it is important to follow the recommended operating parameters and maintenance guidelines.

Please use the reamers within the specified speed and feed rates to maximize tool life and achieve the best surface finish. Regular inspection and proper cleaning after use will help maintain the cutting edges and prevent premature wear.

For sharpening or reconditioning services, we recommend using specialized equipment and techniques suitable for carbide tools to preserve the integrity of the cutting geometry.

If you encounter any issues or require technical assistance with our Carbide Reamers, our support team is available to provide expert guidance on tool selection, application, and troubleshooting.

We also offer a range of services including tool customization, repair, and regrinding to extend the usability of your carbide reamers and ensure consistent machining quality.

Always refer to the product datasheet and safety instructions before use to ensure safe and efficient operation.

Packing and Shipping:

Product Packaging: Each Carbide Reamer is carefully packaged to ensure maximum protection during transit. The reamers are individually secured in custom-fitted plastic sleeves or caps to protect the cutting edges. They are then placed in sturdy, impact-resistant boxes with adequate padding materials such as foam inserts or bubble wrap to prevent movement and damage. For bulk orders, the reamers are organized in compartmentalized trays or racks inside larger cartons to maintain order and safety.

Shipping: We offer reliable shipping options to deliver your Carbide Reamers promptly and securely. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking provided. Depending on your location, delivery times may vary. International shipments are handled with proper documentation to ensure smooth customs clearance. We also provide expedited shipping services upon request. Our packaging and shipping methods guarantee that your Carbide Reamers arrive in excellent condition, ready for use.

FAQ:

Q1: What is the brand and model number of this carbide reamer?

A1: The carbide reamer is branded Supal, and the model number is Reamer.

Q2: Where is the Supal Carbide Reamer manufactured?

A2: It is manufactured in Changzhou, Jiangsu, China.

Q3: What certifications does the Supal Carbide Reamer have?

A3: This product is ISO9001 certified, ensuring high quality standards.

Q4: What is the minimum order quantity and packaging details for the carbide reamer?

A4: The minimum order quantity is 5 pieces, and each reamer is packaged in a single plastic tube.

Q5: What are the payment terms and delivery time for ordering this product?

A5: Payment can be made via T/T, PayPal, or Alipay. Delivery time ranges from 7 to 15 days.
